Injection molding gates are precise openings that allow molten polymer to flow from the runner system into the mold cavity. They act as the key transition point that influences part quality and production efficiency. These small but vital features directly control the polymer’s shear rate, fill pattern, and packing pressure. As a result, they affect fundamental part qualities such as dimensional stability, surface finish, and internal stress. The gate design choice, whether pinpoint, edge, tab, or hot tip, influences filling behavior and ultimately affects part removal and appearance. This article explains the function and types of gates in injection molding, the challenges mold makers face with traditional tool steel and carbides, and how Ferro-Tic’s steel-bonded titanium carbide offers superior wear resistance, machinability, and thermal stability. It also covers the benefits, including longer mold life, minimal maintenance, and more consistent product quality.

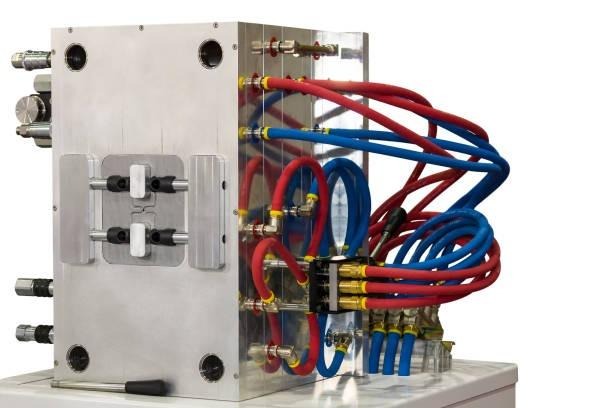

The Role of Gates in Injection Molding
The gate serves as the final control point where molten polymer flows from the runner into the mold cavity, and it controls the shear rate and fill pattern to ensure proper packing, part density, and dimensional stability. Its various designs—pinpoint, edge, tab, or hot tip—balance flow behavior, cosmetic needs, and overall ease of use. Because gate geometry directly affects cycle time by enabling fast filling, strong pressure transfer, and quick freeze-off, it plays a major role in production efficiency. This precise control also allows for early part ejection, boosting output while protecting the quality of the finished component.
What Causes Wear in Injection Molding Gates
Gate wear in injection molding stems from a destructive synergy of repeated thermal cycling, intense pressure impact, and mechanical erosion. Each injection cycle subjects the gate surface to extreme thermal stress, as it is rapidly heated by the molten polymer and then cooled. This constant expansion and contraction fatigues the steel, gradually degrading its microstructure. Simultaneously, the high impact of the polymer jet erodes the orifice, while mechanical friction from the material flow further wears away the surface. Over time, this combined assault initiates micro-cracks on the gate’s surface. These microscopic flaws then propagate and coalesce, leading to measurable dimensional wear. The gate orifice slowly enlarges and loses its precise form, ultimately causing defects like flash and compromising the part quality it was designed to ensure.
Limitations of Traditional Gate Materials
Tool Steels
Tool steels are versatile, heat-treatable alloys commonly used for mold cores and cavities. However, their relatively low hardness and modest wear resistance are significant limitations for gate applications. The constant high-velocity flow of abrasive polymers quickly erodes the precise gate orifice. This erosion leads to flashing and dimensional inaccuracy in production parts. Consequently, this wear necessitates frequent polishing and eventual gate replacement. As a result, unplanned production stops and high downtime occur.
Tungsten Carbides
Tungsten carbides offer exceptional hardness and superior wear resistance. Its extreme brittleness, however, is a critical weakness. The high-impact stress of polymer injection can cause chipping at the sharp gate edges. This brittle failure is sudden and catastrophic, not gradual. Repairing a chipped carbide gate insert is sometimes impossible. This forces a complete and costly replacement of the component. The resulting mold downtime for repair is typically extensive and disruptive.
Standard Steel-Bonded Carbides
Some steel-bonded carbides improve upon the brittleness of tungsten carbide grades. Yet many still lack an optimal balance of properties for gate service. They may offer good wear resistance but poor machinability for precise gate profiling. Alternatively, some grades may have insufficient thermal fatigue resistance. This leads to micro-cracking from repeated heating and cooling cycles. These cracks accelerate wear and degrade part quality. This unreliable performance still leads to premature failure and routine maintenance.
How Ferro-Tic Improves Gate Performance
Ferro-Tic is a proprietary steel-bonded titanium carbide composite, where a high-volume fraction of ultra-hard titanium carbide particles is uniformly dispersed within a tough, alloy steel matrix. This unique metallurgical structure combines the extreme hardness of a ceramic with the toughness and workability of tool steel. The material’s exceptional thermal stability resists softening and microstructural degradation that occur at molding temperatures, while its superior oxidation resistance prevents scaling and surface deterioration. This synergy of properties provides outstanding resistance to the adhesive and thermal fatigue mechanisms that plague traditional gate materials. But extends the service life and routine maintenance of precise gate geometry over millions of cycles for Ferro-Tic.
Choosing Ferro-Tic for gate application eliminates chronic wear issues by combining machinability with exceptional hardness. It preserves sharp edges, cuts downtime, reduces maintenance costs, and ensures consistent part quality. Made in the USA and proven over decades, Ferro-Tic delivers lasting performance and long-term molding profitability.
Advantages in Real-World Applications
- Machinability for Complex Gate Designs: Unlike brittle alternatives, Ferro-Tic can be machined into complex gate profiles in its annealed state. This allows mold makers to achieve optimal gate designs for superior part filling and easy degating, which are then permanently locked in after heat treatment.
- Consistent Part Quality: By maintaining precise gate geometry over millions of cycles, Ferro-Tic prevents defects like flash and short shots. This ensures every part meets dimensional and cosmetic specifications, drastically reducing scrap rates and associated costs.
- Reduced Operational Costs: The combination of less frequent maintenance, lower scrap rates, and eliminated downtime for gate repairs significantly lowers the cost-per-part. This provides a strong ROI and improves the overall economics of the molding operation.
- Extended Production Runs: Ferro-Tic’s exceptional wear resistance directly translates to longer intervals between maintenance. This enables the completion of larger production orders without unplanned stoppages for gate repair or replacement, thereby maximizing machine uptime and throughput.
Choosing the Right Ferro-Tic Grade for Gates for Plastic Injection Molding
Among Ferro-Tic’s specialized grades, including the corrosion-resistant CM grade, the strong tool steel matrix of the C grade, and the stainless MS-5A grade, the SK grade is the top choice for plastic injection molding gates. Its metallurgical composition is specifically designed for this demanding application, featuring a martensitic stainless steel matrix uniformly bonded with about 45% titanium carbide. This structure gives the SK grade key properties: it is fully machinable when annealed, enabling precise fabrication of complex gate shapes, and can later be heat-treated for high hardness and excellent wear resistance. For a gate, this means maintaining a sharp, critical orifice despite the constant abrasion from filled polymers and the high impact stress of each injection cycle. The stainless matrix also offers inherent corrosion resistance, preventing degradation from aggressive polymers and moisture.
Using the Ferro-Tic SK grade helps to eliminate gate wear as a failure mode, ensuring sustained part quality over exponentially longer production runs. The SK grade also transforms the economics of molding operations through unparalleled durability and minimal downtime.
